XR - Create the Screens

LED walls and Internal Processors

In this example, we will use a setup comprising a Planar Led Screen floor and two Planar Led Screen walls to create a half-box configuration.

Create the floor

If your configuration involves a floor LED screen, you can begin by creating it as follows:

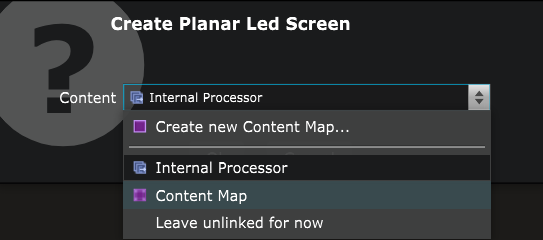

• Inside your Stage , create a first Planar Led Screen with an internal processor.

• Set the pitch, size and resolution of the Internal Processor of the floor LED screen to match the real LED screen you are using.

• You can rename this Planar Led Screen Floor .

Although starting with the creation of the floor is more of a recommendation than an obligation,note that the first Planar Led Screen in your stage will serve as a reference for the XR - Calibration procedures .

Create the walls

You can duplicate the Planar Led Screen previously created twice and position them to form a half-box configuration.

You can rename them to, for example, ‘Left’ and ‘Right’.

You can use a custom geometry by importing an FBX file as Free Shape Led Screen using the Import as Group in the Stage option.

You can now proceed to the next step: Camera Tracking .
