XR Calibrator Editor

Editor panel for XR Calibrator

XR Calibrator Editor requires a specific XR/AR license. If you’d like to try out these features to decide whether you want to purchase an XR/AR license, please contact us.

The XR Calibrator is used for XR - Calibration procedures .

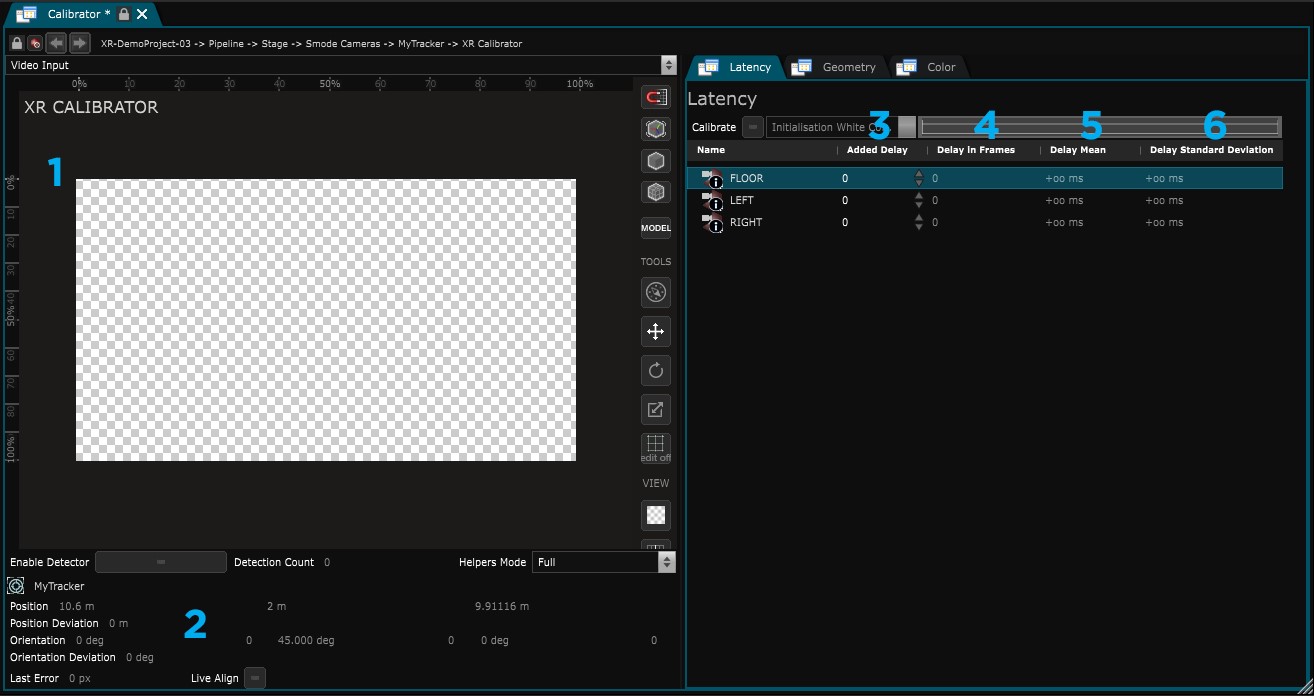

Latency Tab

1. Viewport: The stream of the XR Calibrator ’s Video Input .
2. Tracker informations: The current position orientation of the Tracker of the Physical Camera including deviations. A positive value for position deviation and orientation deviation indicates that your tracker is currently in motion.
3. Added delay: Frame delay applied for every screen as a result of the XR - Latency Calibration .
4. Delay in frames: Frame delay calculated by the algorithm.
5. Delay Mean: Average time in milliseconds between the emission of white content and its reception.
6. Delay Standard Deviation: Actual difference between the mean delay (which is an average) and the actual time between emission and reception.

Refer to the XR - Latency Calibration topic for more information.

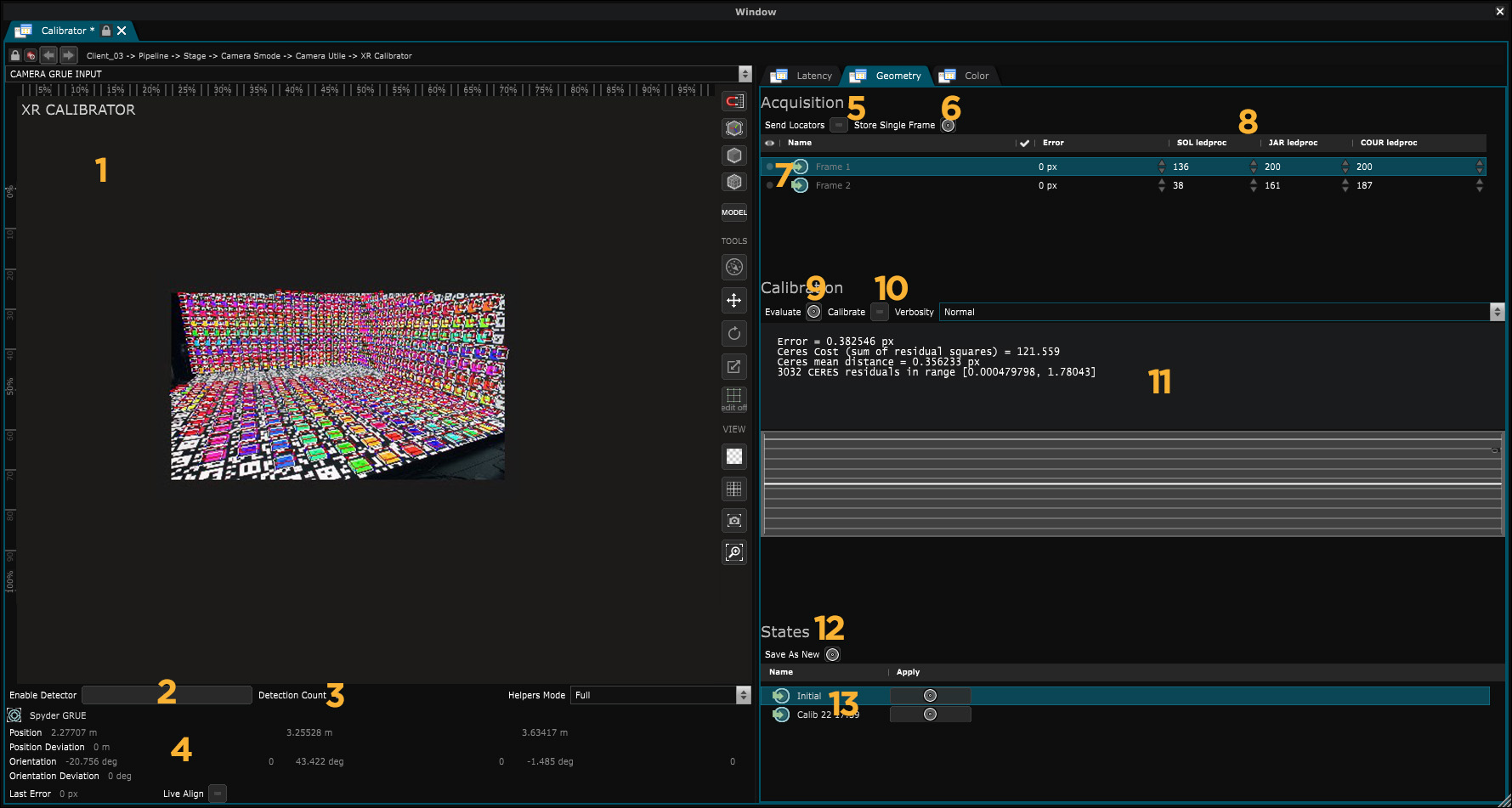

Geometry Tab

1. Viewport: The stream of the XR Calibrator ’s Video Input .
2. Enable Detector: Enables the detection of April Tag and displays helpers in the viewport.
3. Detection count: Number of April Tag detected (result of the April Tag detector modifier ).
4. Tracker informations: The current position orientation of the Tracker of the Physical Camera such as the deviation. A positive value for Position Deviation and Orientation Deviation indicates that your tracker is currently in motion.
5. Send Locators: Displays a April Tag Grid in each Led screen.
6. Store Single Frame: Button to store a frame for calibration.
7. List of single frames: Every single frame is listed here.
8. Single frame information: The number of detected April Tag for each screen and the pixel gap between their position in the video input stream and the stage simulation.
9. Evaluate: Calculates the average pixel gap.
10. Calibrate: Starts the calibration.
11. Console output
12. Save as Calibration State: Saves the calibration results as a calibration state.
13. Calibration States List: All calibration results can be retrieved as states, and they appear in this list.

Refer to the XR - Geometry Calibration topic for more information.

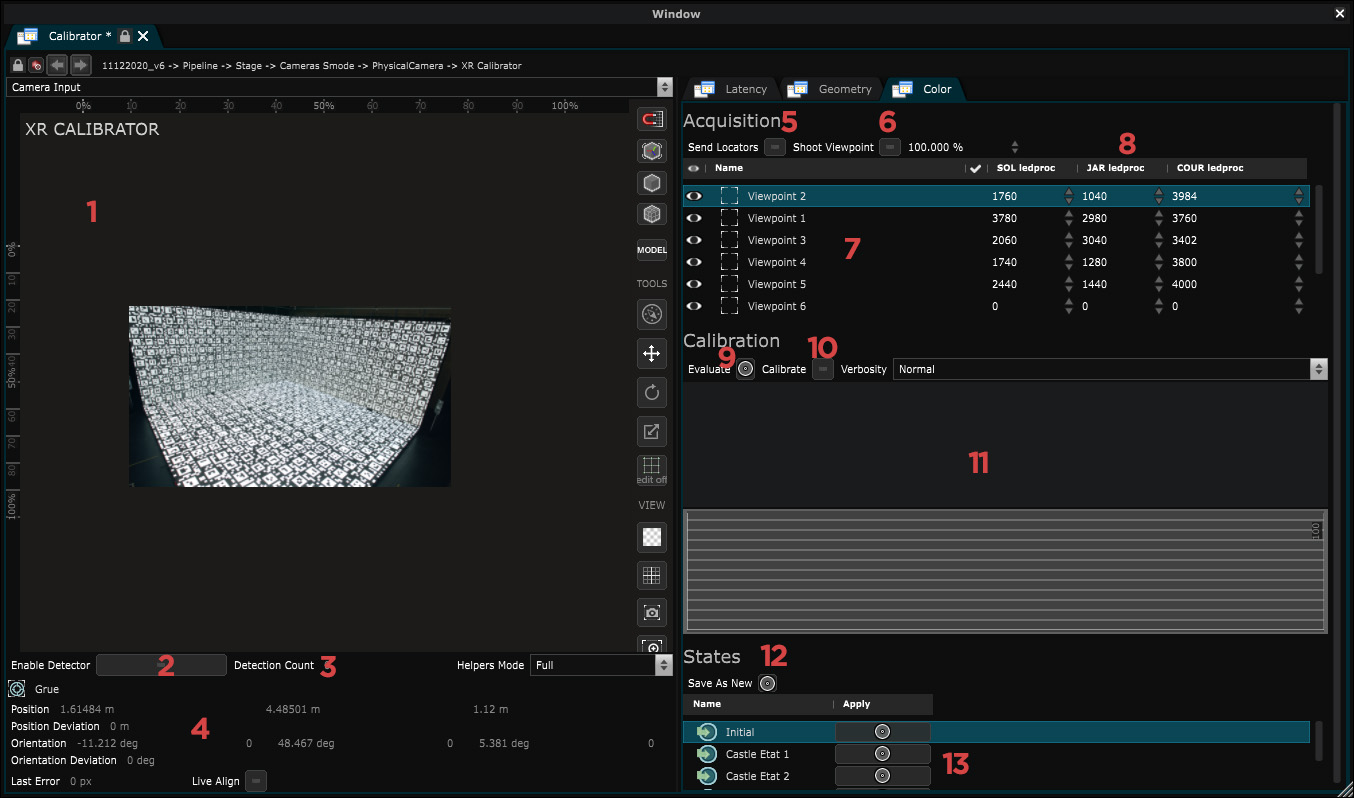

Color Tab

1. Viewport: The stream of the XR Calibrator ’s Video Input .
2. Enable Detector: Enables the detection of April Tag and displays helpers in the viewport.
3. Detection count: Number of April Tag detected (result of the April Tag detector modifier ).
4. Tracker informations: The current position orientation of the Tracker of the Physical Camera such as the deviation. A positive value for Position Deviation and Orientation Deviation indicates that your tracker is currently in motion.
5. Send Locators: Displays a April Tag Grid in each Led screen.
6. Shoot viewpoint: Starts the capture of a viewpoint for calibration.
7. List of viewpoints: Every viewpoint is listed here.
8. ViewPoints information: The number of detected April Tag for each screen and the pixel gap between their position in the video input stream and the stage simulation.
9. Evaluate: Average Evaluation of Color Differences between Emitted Colors and Received Colors.
10. Calibrate: Starts a calibration. The calculation depends on the number of viewpoints shot.
11. Console output
12. Save as Calibration State: Saves the calibration results as a calibration state.
13. Calibration States List: All calibration results can be retrieved as states, and they appear in this list.

Refer to the XR - Color Calibration topic for more information.
