Color mask
2D Mask - Select each pixel depending on its color
A color mask only depends on pixel colors and can be configured to perform either color keying or color selection based on the RGBA channels.

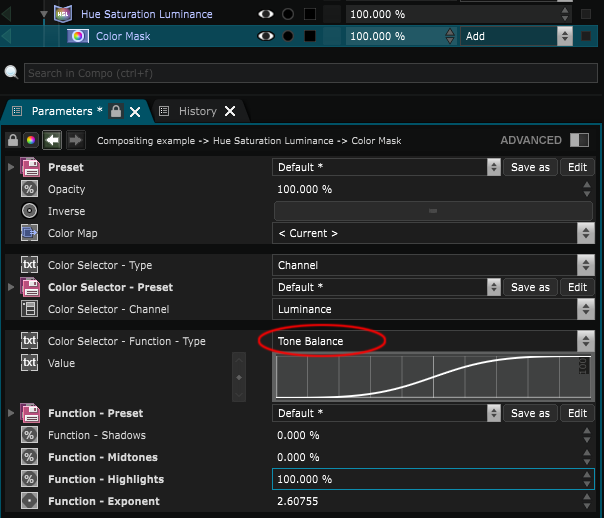

The color selector function can be changed to many different function types such as Keyframe Function or Color Tone Balance:

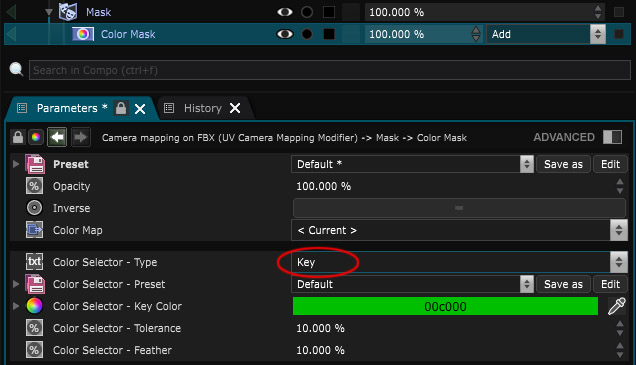

You can also do some chroma key using presets, or by turning the color selector type parameter from “channel” to “key” in order to select a specific color for this mask.
Chroma Key
In this case, feather and tolerance are the only parameters you can act on.
-
Tolerance : Distance of the color range from the one you picked up.
-
Feather : Smoothness of this range.
This modifier has a 3D equivalent :
Color
.
-
Color Keying
-
Channel Extraction
Variables:
- Color Selector: Defines a selection criteria for the color function
- Loading: The loading status of the color selector . It can be loaded , enabled by not loaded or unloaded
- Activation: The activation status of the color selector . It can be active , enabled by not active or inactive
- Color Label: Associate a color label to your color selector to make it easily locatable
- Solo: Activate this to keep only this color selector active and hide all otherin same location
- Editable: The editabiliy status of the color selector . It can be locked directly , locked indirectly or editable
- Preset: Select a preset to apply on the color selector
- Status: Warnings and errors associated to this color selector
-
Color Map:
This optional parameter enables to extract colors from another
2D Generator
than the current one, such as a shared pre-composition
Python
Oil.createObject("ColorTextureMask")
