Smart Lut
2D Modifier
-
Modify colors using a LUT from a
XR Display information

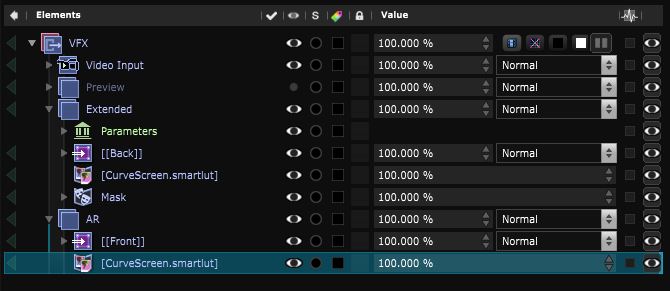

To create the smart lut you need to search it in the instantiator ( Create Layers ):

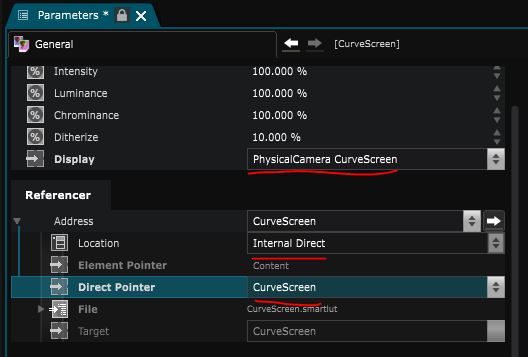

Once you have created a
Smart Lut
you need to select the Display that it’s using as its data:
The smart lut uses the data stored into the
XR Display information
that is generated by a
XR Calibrator
when doing a
XR - Color Calibration
.
Check out the
XR - Color Calibration
topic to see the steps from recording the color to applying the
Smart Lut
to your VFX processor.
Variables:
-
Display:
Selector of the
XR Display information
Python
Oil.createObject("SmartLutTextureModifier")
